Quick Conclusion: S034 is an important feasibility study that tests SCG in a complex patient population (CHD). By using Cardiac MRI as a comparator, it establishes a benchmark for non-invasive Stroke Volume monitoring in remote scenarios, while highlighting the benefit of multi-modal sensing.
📊 Key Accuracy Metrics
| Metric | Result |
|---|---|
| SV Error | 28% (with respect to CMR) |
| RMSE | 11.48 mL |
| R2 | 0.76 |
🔍 Study Analysis
Objective & Population
Observational Study / Feasibility Study. Cohort: Patients with congenital heart disease (CHD), children and adults (N=45).
What it Supports
The study demonstrates the feasibility of using wearable SCG (especially when integrated with ECG) to estimate Stroke Volume in patients with congenital heart disease. It shows a correlation (R2=0.76) with standard Cardiac MRI measurements.
What it Does Not Support
The study does not support the independent use of SCG for high-precision SV monitoring without ECG. The 28% error rate indicates it is more suitable for trending and monitoring than as a primary diagnostic tool.
🛠 Technical Context
- DOI: 10.1161/jaha.122.026067
- Authors: V. Ganti et al.
- Confidence Tier: Supporting

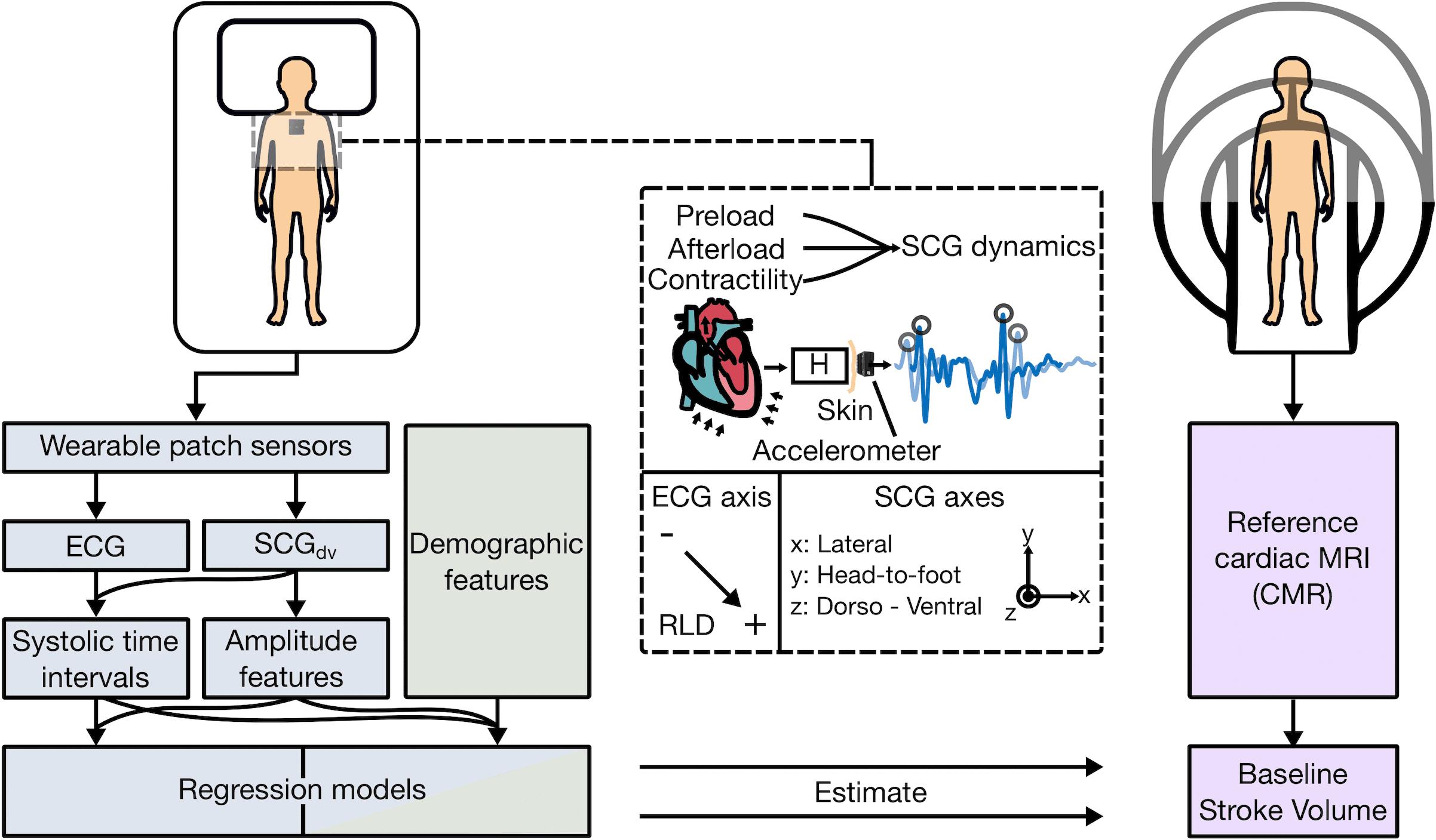

![Figure 1. Concept overview. Study design showing wearable biosensor placement when supine and asynchronous reference cardiovascular magnetic resonance imaging (CMR) measurement. Seismocardiogram (SCG) mechanistic overview detailing modulation due to cardiac physiology, acquisition with an accelerometer, and sensing axes for ECG (negative, positive, and right-leg-drive [RLD] electrodes), and triaxial SCG signals. Analysis pipeline, from sensor input to model estimation of stroke volume, for wearable (blue), demographic (green), and CMR (purple) data. H indicates the transfer function between the input internal sources of cardiomechanical vibration and the output SCG waveform measured on the surface of the torso; MRI, magnetic resonance imaging; and SCGdv, dorso-ventral SCG.](/_next/image?url=%2Fscience-hub%2Fimages%2FS034%2FS034_p3_i1.png&w=3840&q=75)
