Design and Development of a Portable Recording System for Simultaneous Acquisition of SCG and ECG Signals
Executive Summary
This study presents the design and development of a portable system for simultaneous acquisition of seismocardiography (SCG) and electrocardiography (ECG) signals using PVDF piezoelectric sensors. The system employs advanced signal processing techniques, including low-pass and notch filters, to extract cardiac and respiratory features. The findings demonstrate the feasibility of SCG as a complementary tool to ECG for assessing heart mechanics, with potential applications in real-time monitoring and diagnostics.
Answer Machine Insights
Q: What is the main advantage of using PVDF piezoelectric sensors for SCG acquisition?
PVDF piezoelectric sensors provide high sensitivity to vibrations while minimizing external acoustic noise, enabling reliable SCG signal acquisition.
Polyvinylidene fluoride (PVDF) polymeric film not only shows clear and strong piezo-electricity but also pyro- and ferroelectric properties and therefore it is used as a sensor or transducer material whose application is found in enormous sectors like biomedical devices, mechanical, metrological, etc.
Q: How were SCG signals validated in this study?
SCG signals were validated by comparing the waveform annotations with standard schemes proposed by Crow et al. (1994) and Anh Dinh (2011).
After analyzing the cardiac events a single waveform is taken from filtered signal for pointing out all the annotations that have been previously proposed and took as a reference signal to compare with filtered signal.
Key Results
PVDF piezoelectric sensors successfully recorded SCG, respiratory signals, and heart sounds with frequency bands of 0.05-1 Hz, 1-50 Hz, and 50-150 Hz respectively.
Synchronized averaging of SCG signals over 10 cardiac cycles demonstrated continuity with standard annotation schemes.
Visual Evidence

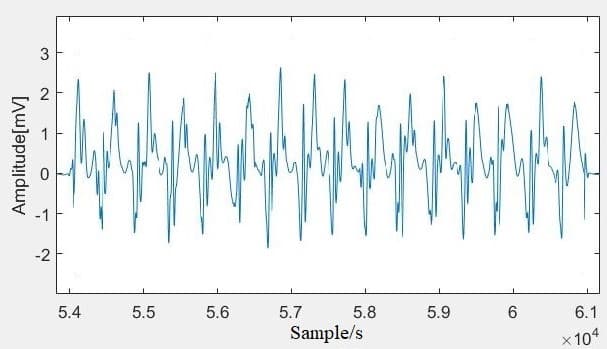

![Figure 13 shows the results obtained from the operation of synchronized average made of 10 consecutive cardiac cycles. The average signals of ECG and SCG show the continuity of the annotations of the seismocardiographic signals. Comparing this average signal with another standard annotation scheme proposed by Anh Dinh (2011) also verify this research result [16]. Comparison of these two signals are given in figure 14.](/_next/image?url=%2Fscience-hub%2Fimages%2F10.1109_icasert.2019.8934619%2F10.1109_icasert.2019.8934619_p5_i2.jpeg&w=3840&q=75)
Figure 13 shows the results obtained from the operation of synchronized average made of 10 consecutive cardiac cycles. The average signals of ECG and SCG show the continuity of the annotations of the seismocardiographic signals. Comparing this average signal with another standard annotation scheme proposed by Anh Dinh (2011) also verify this research result [16]. Comparison of these two signals are given in figure 14.
